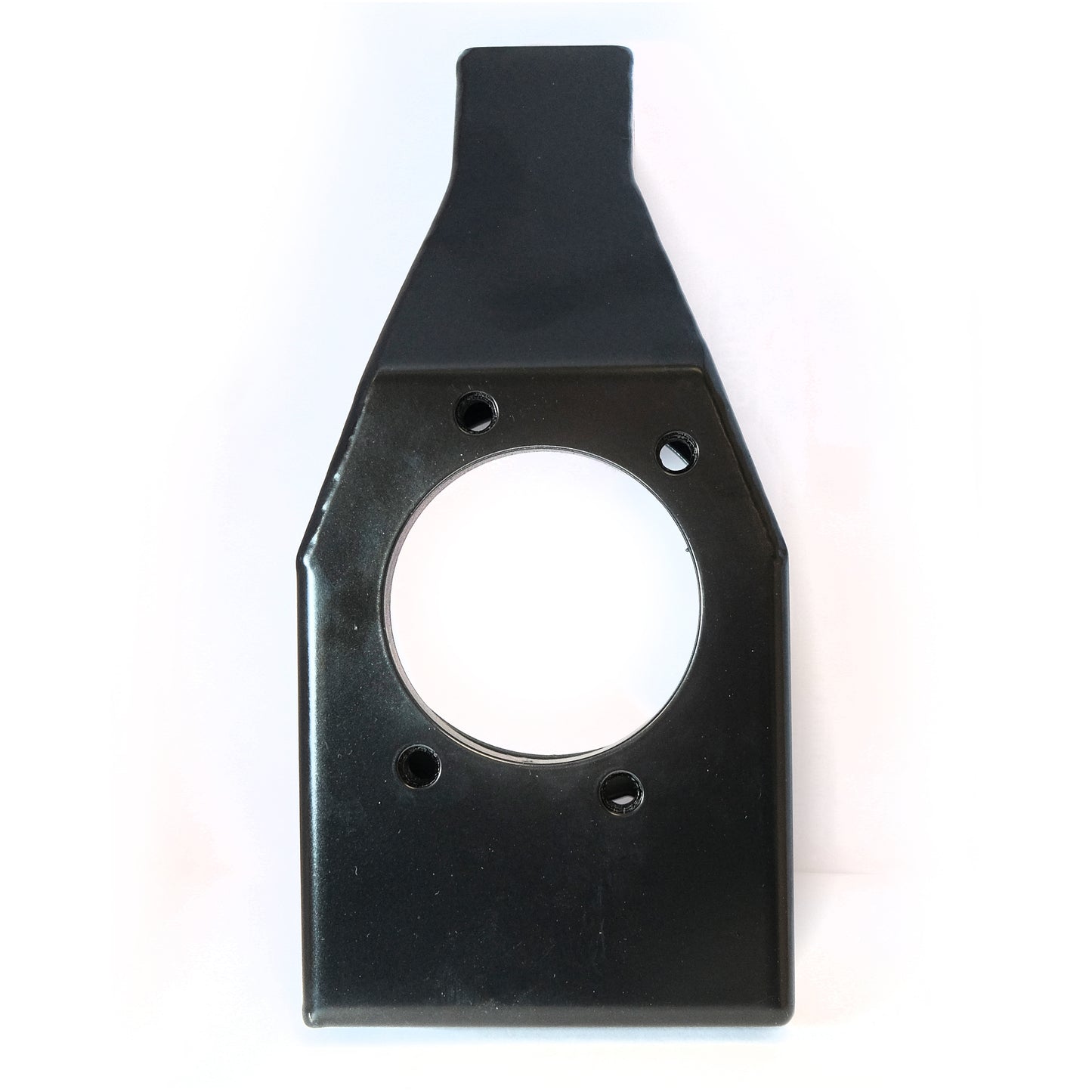

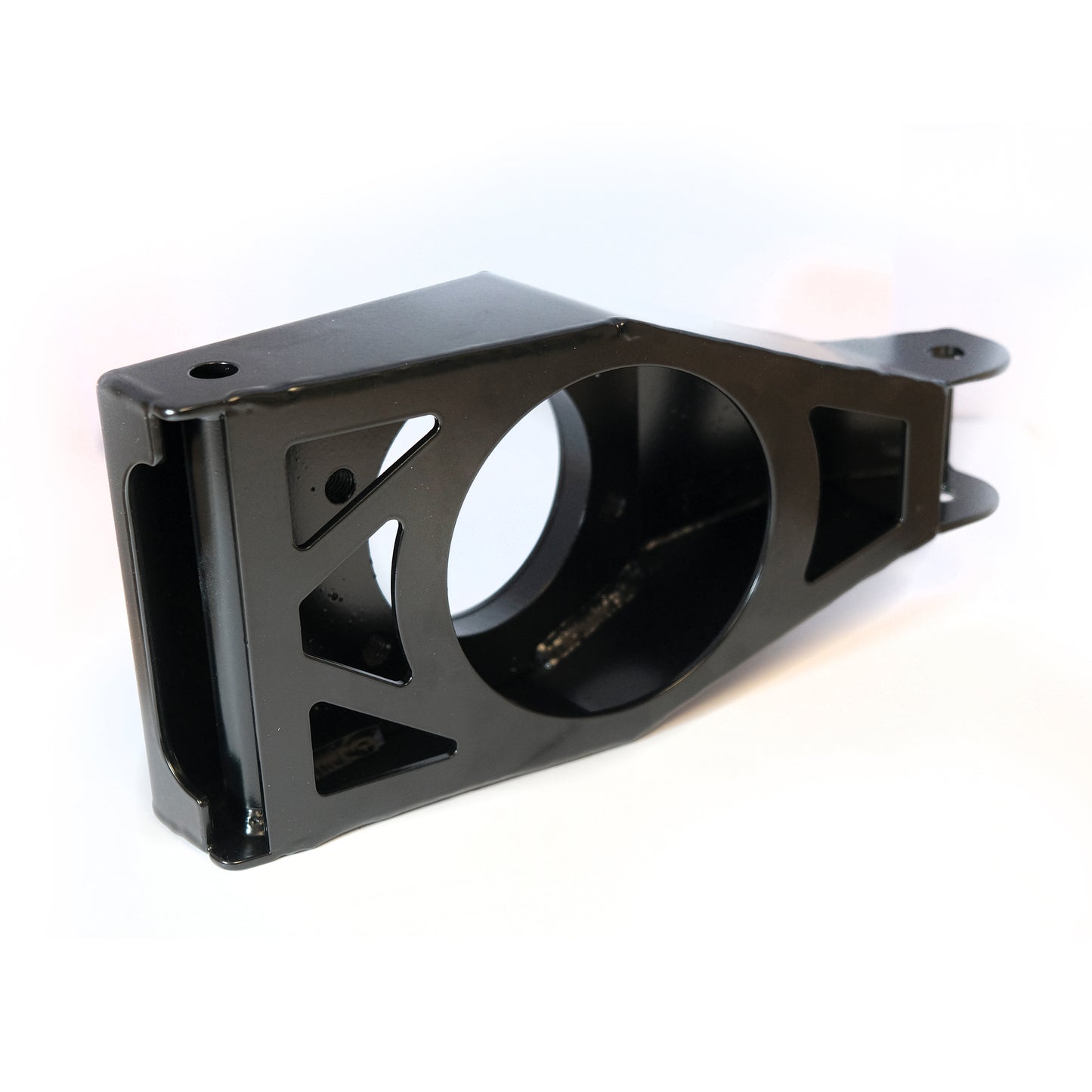

MK Indy Rear Upright (Pair)

MK rear uprights are made from mild steel and are full welded and powder coated.
your bearing carrier will bolt directly to this.

For MK Indy (outboard front suspension) drum to disk conversion, you will also the mk indy brake disk adapters

Please select the model you require

Please note, the MK Indy Classic rear upright is 115mm wide at the bottom, while the MK Indy R and RR uprights are 125mm wide at the bottom

The other main difference between these uprights is that the suspension mounting on the Indy Classic is above the wishbone fixing point, while on the Indy R, the suspension pickup point is on the bottom wishbone.

The Indy Classic has 2 different versions of upright; Disk and Drum

The drum upright for the Indy Classic has the hexagonal mounting point on the upright positioned in a horizonal layout

The disk upright for the Indy Classic has the hexagonal mounting point on the upright positioned in a diagonal layout - this is so the brake caliper can clear the shock absorber mounting

It is not possible to mount the disk brake caliper on the drum upright, so if you want to upgrade your Indy Classic from drums to disks, you'll need the diagonal hexagonal mounting points on the uprights too.

Please Note: This product is made to order and can take between 7 - 14 working days.
