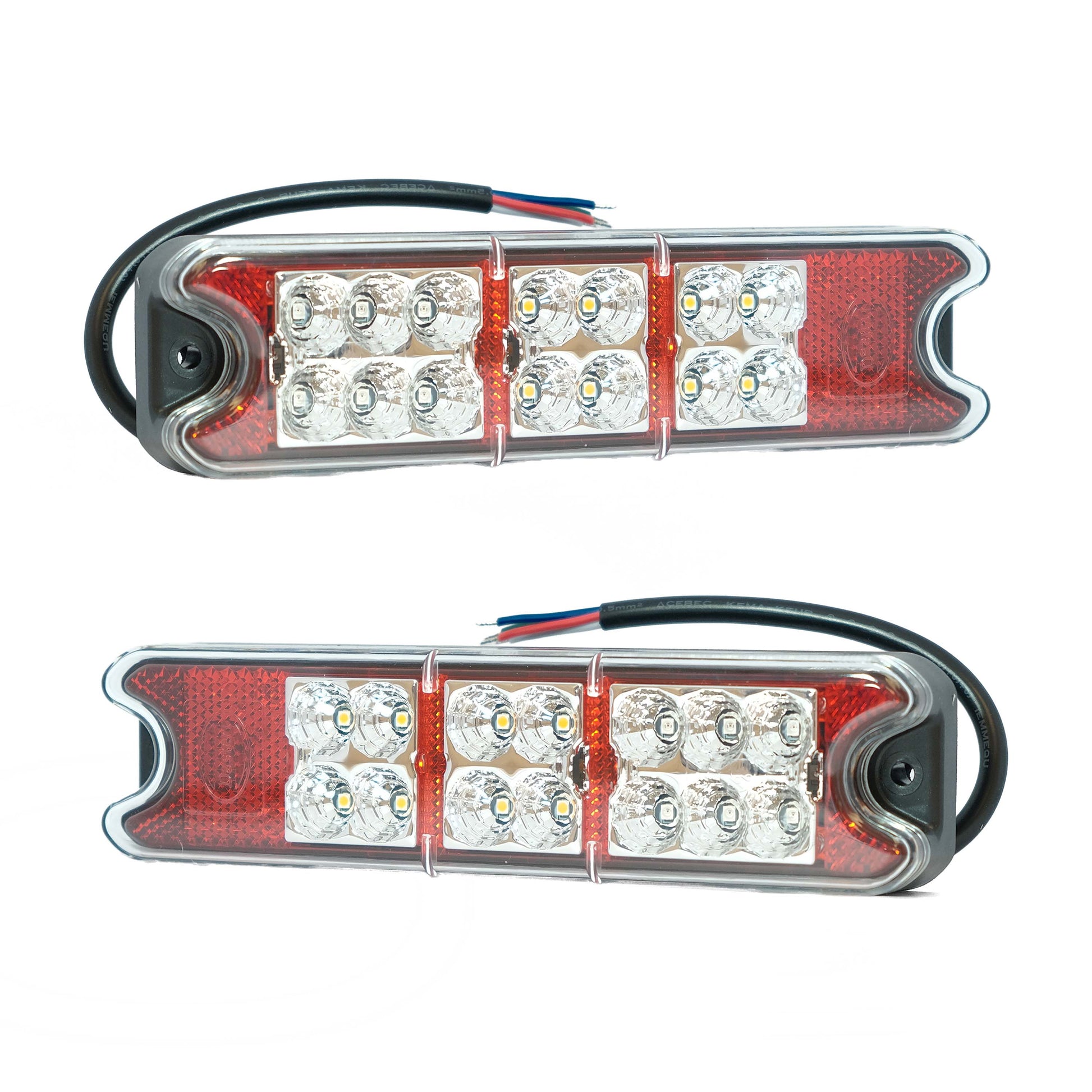

• Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)
  • Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)
  • Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)
  • Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)
  • Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)
  • Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)
1 7

Universal

Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)

Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair)

Click here to be notified by email when Universal LED All In One Rear Light Unit + Reverse With Built In Reflector (Pair) becomes available.


£129.99 GBP
£119.99 GBP £129.99 GBP
Sale Sold out
Tax included.

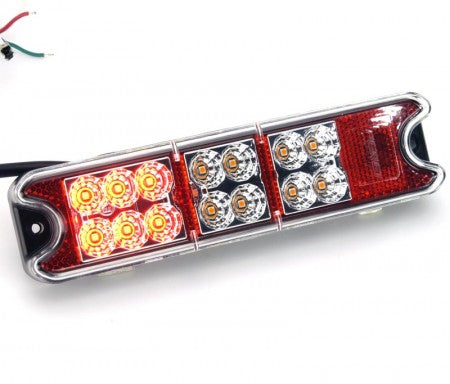

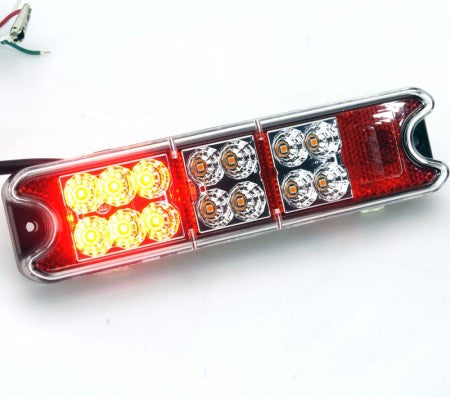

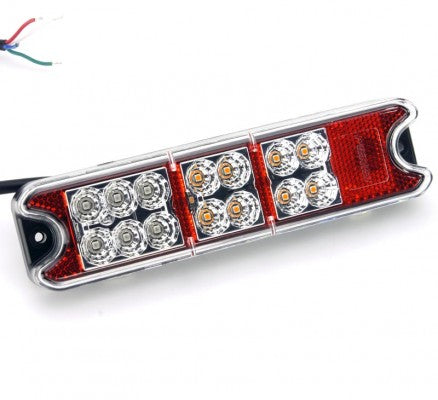

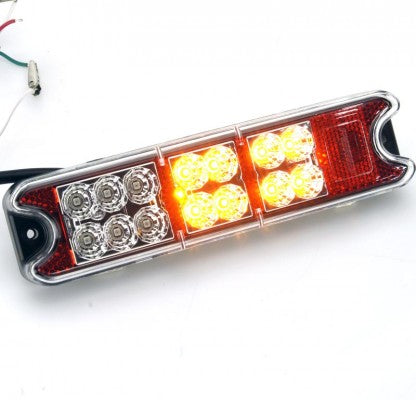

RECTANGULAR LED ALL IN ONE REAR LAMP IVA OK 'E'9 marked. Stop, Tail Indicator, Reverse and Reflector.

Size 192mm x 50mm x 28mm thick.

Stop: 2.5W | Tail: 0.5W | Indicator: 1.5W | Reverse: 2W

9 White Reverse SMD LEDs | 6 Amber Indicator SMD LEDs | 6 Red Stop SMD LEDs | 6 Red Tail SMD LEDs

Rated IP67

Two x 4mm mounting holes @ 173mm centres.

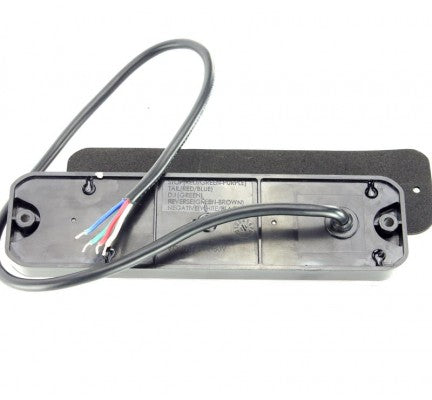

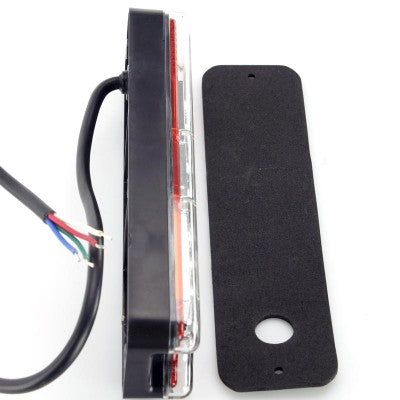

500mm long flylead. Foam rubber mounting gasket.

Will operate from 10 volts to 30 volts. Weight 400gms pair.

Wiring Configuration:

Black - 12v Negative
Green - Indicator
Red - Tail
Green / Purple - Stop
Green / / Brown - Reverse
